Heating elements for industry
Medical device heating elements

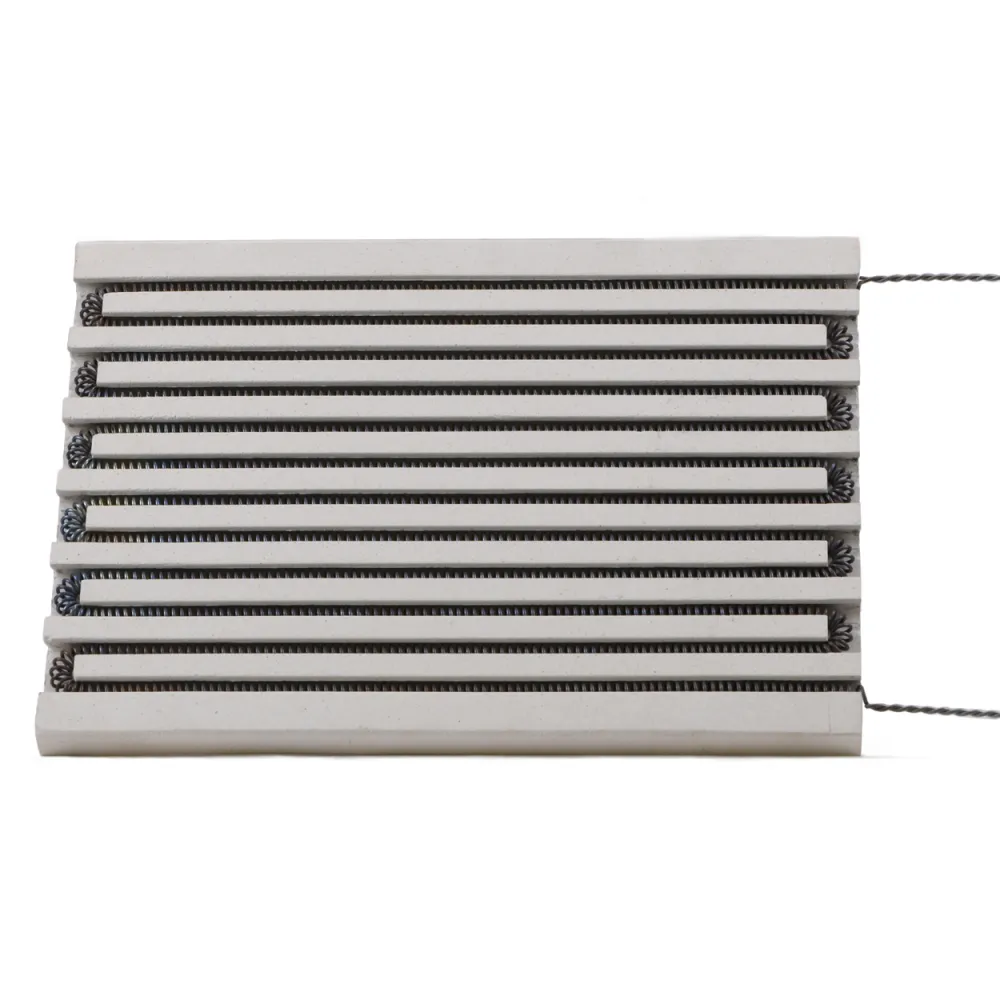

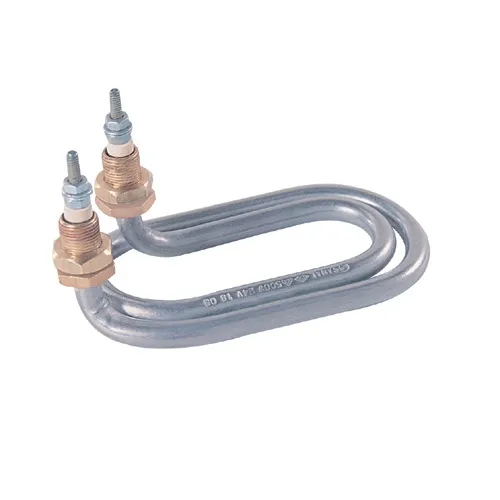

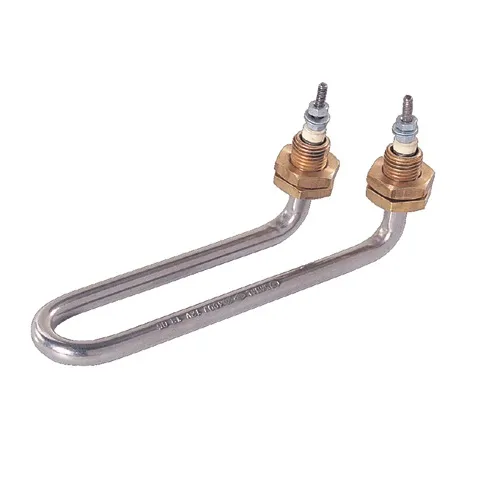

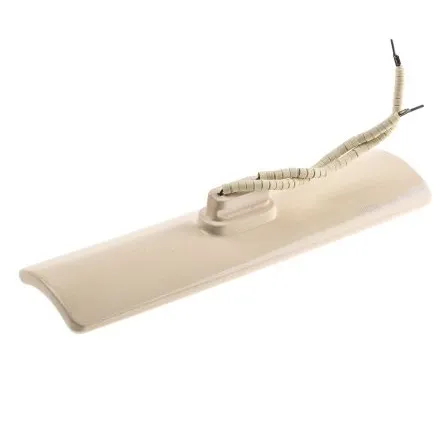

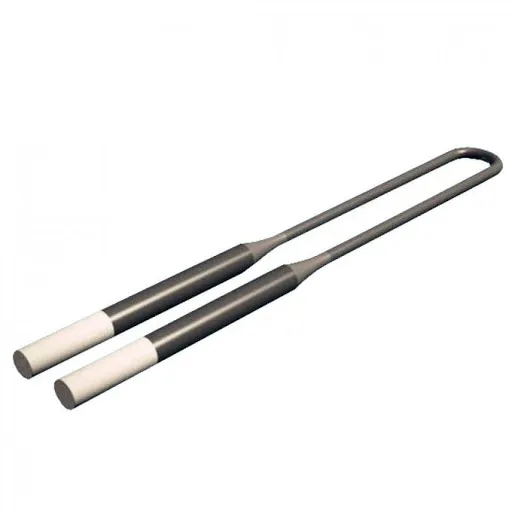

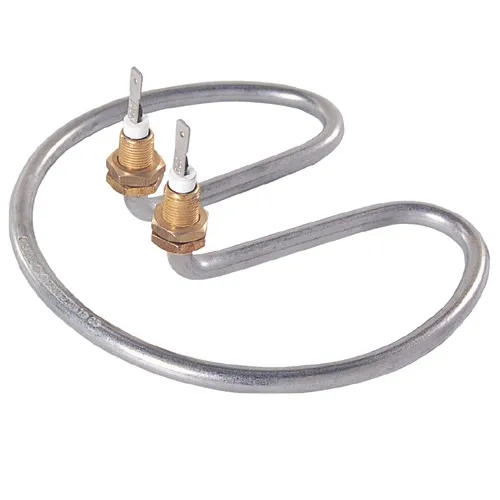

Merkur manufactures heating elements for medical appliances such as dental furnaces, sterilisers, autoclaves and incubators.

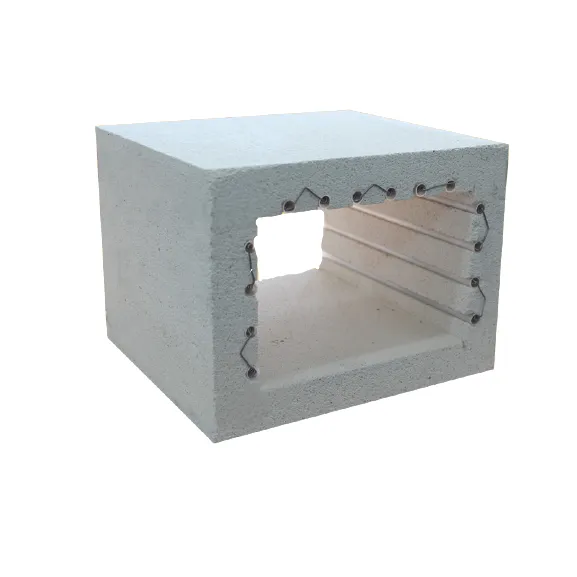

For dental furnaces we either reuse the existing heat-resistant structure to build the heating element, or replace the structure entirely, performing a full service of the equipment.
We offer solutions not only for the best-known manufacturers of such appliances, but also for new manufacturers, and we advise you on how to reach the optimal heating solution for the medium and operating temperature of your appliances.
Technical specifications
- Diameter
- 6.5 mm8.5 mm
- Tube material
- Stainless steel AISI 304Stainless steel AISI 309Incoloy 800
- Wire material
- Nikrothal 80 (NiCr alloy)Kanthal A (FeCrAl alloy)Kanthal D (FeCrAl alloy)
- Voltage
- 230 V400 V
- Power
- 250 – 12000 W
- Medium
- AirWater
Have a technical drawing, a sample, or just the power rating you need?
Tell us what you need and our team will get back to you quickly with a solution and a quote.
